Vision120

Vision120

Full-function PLC with built-in monochrome graphic LCD display, keypad and onboard I/O configurations; expands up to 256 I/Os.

Vision120 front

Front

Vision120 side

Side

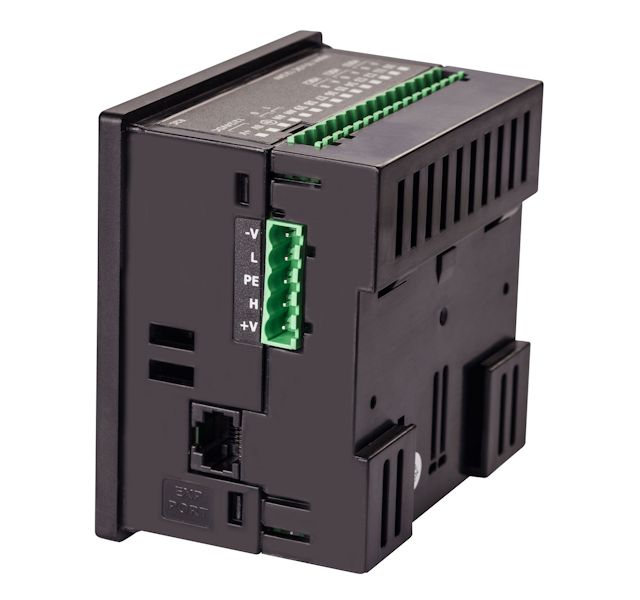

Vision120 back

Back

Click on an image to view a larger version; use your browser's "Back" button to return to this page.

More Info

Vision120 Overview

+PLC

  • I/O options include high-speed, temperature and weight measurement
  • Auto-tune PID, up to 12 independent loops
  • Recipe programs and data logging via Data Tables
  • Date and time-based control

+HMI

  • Up to 255 user-designed screens
  • Hundreds of images per application
  • HMI graphs and Trends
  • Memory and communication monitoring via HMI – No PC needed

+Communication

  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN (in C models only).
  • FB Protocol Utility: enables serial or TCP/IP communications with 3rd-party device; barcode readers, frequency converters, etc
  • 2 RS232/RS485 built-in ports

+I/O

  • I/O options include digital, analog, high-speed, temperature and weight measurement. See tables below:
    • Vision120™ models – Onboard I/Os
    • I/O Expansion Modules

Vision120 Details

+I/O Expansion

Local or Remote I/Os may be added via expansion port or via CANbus. Expand up to 256 I/Os — see table below I/O Expansion Modules.

+Program

Application Memory: 448K (virtual) Ladder code capacity

Scan Time: 48µ sec per 1K of typical application

Memory Operands: 4096 coils, 2048 registers, 256 long integers (32-bit), 64 double words (32-bit unsigned), 24 floats, 192 timers (32-bit), 24 counters

Data Tables: 120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data

SD Card (Micro): Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI and OS, clone PLCs

Enhanced Features: Trends: graph any value and display on HMI • String Library: instantly switch HMI language

+Operator Panel

Type and colors: Graphic STN LCD

Display: Resolution: 128 x 64 pixels • Size: 2.4"

Keys: 16 keys

+General

Power Supply: V120-22- R1 / R2C / T1 / T2C / UN2 : 12/24VDC
V120-22- R6C / R34 / T38 / UA2 / RA22 : 24VDC

Battery: 7 years typical at 25°C, battery back-up for all memory sections and RTC

Clock: Real-time clock functions (date and time)

Environment: IP65/NEMA4X (when panel mounted)

Standard: CE, UL Many of our products are also UL Class 1 Div 2 and GOST certified - please contact Unitronics

Vision120 Models - Onboard I/O

Tip: this table is best viewed on a wider screen such as a laptop or desktop PC

+Vision120 Models - Onboard I/O

Inputs 1 Outputs
Article Summary Digital 2 HSC/Shaft-encoder 4 Analog Temperature
Measurement		 Transistor 3 PWM/HSO 3 Relay Analog Operating
Voltage
V120-22-R110 Digital,
1 Analog Inputs,
6 Relay Outputs		103
10kHz,
32-bit		1
0-10V,
0-20mA,
4-20mA
10-bit		None NoneNone6None12/24VDC
V120-22-R2C10 Digital,
2 Analog Inputs,
6 Relay Outputs		103
10kHz,
32-bit		2
0-10V,
0-20mA,
4-20mA
10-bit		None NoneNone6None12/24VDC
V120-22-R6C6 Digital,
6 Analog Inputs
6 Relay Outputs		 61
10kHz,
32-bit		 2
0-10V,
0-20mA,
4-20mA
and 4
0-20mA,
4-20mA
10-bit		 NoneNoneNone6None24VDC
V120-22-R3420 Digital,
2 D/A 1 Inputs,
12 Relay Outputs		223
10kHz,
32-bit		2
0-10V,
0-20mA,
4-20mA
10-bit		 NoneNoneNone12None24VDC
V120-22-T112 Digital Inputs
12 Transistor Outputs		122
10kHz,
32-bit		NoneNone 12 pnp2
0.5kHz		NoneNone12/24VDC
V120-22-T3822 Digital Inputs
16 Transistor Outputs		222
10kHz,
32-bit		NoneNone 16 pnpNoneNone24VDC
V120-22-T2C 10 Digital,
2 D/A 1 Inputs
12 Transistor Outputs		12 3
10kHz,
32-bit		2
0-10V,
0-20mA,
4-20mA
10-bit		None12 pnp2
0.5KHz		NoneNone12/24VDC
V120-22-UN210 Digital,
2 D/A/TC/PT100 1
Inputs
12 Transistor Outputs		122
10kHz,
32-bit		2 Thermocouple,
PT100, 0-10V, 0-20mA, 4-20mA 14-bit		12 pnp2
0.5KHz		NoneNone12/24VDC
V120-22-UA210 Digital,
2 D/A/TC 1 Inputs
10 Transistor,
2 Analog Outputs		121
10kHz,
32-bit		2 Thermocouple, 0-10V, 0-20mA, 4-20mA, 14-bit10 pnp 2
0.5KHz		None2
0-10V,
4 -20mA
12-bit		24VDC
V120-22-RA228 Digital,
2 D/A,
2 TC/PT100/Digital 1 Inputs
8 Relay,
2 Analog Outputs		121
10kHz,
32-bit		2
0-10V,
0-20mA,
4-20mA
14-bit		2 Thermocouple, PT100NoneNone82
0-10V,
4 -20mA
12-bit		24VDC

Notes:

  1. In some models certain inputs are adaptable via wiring and software settings, and can function as digital, high-speed, analog, and in certain models as TC or PT100.
    Adapting requires input pins. This reduces the number of digital inputs. Pin requirements:
    • Each high-speed requires 1 or 2 pins according to high-speed mode.
    • Each analog input requires 1 pin.
    • Each TC requires 2 pins per TC input
    • The first PT input requires 3 pins, and two additional pins for each additional PT input.
      Example: V350-35-RA22 offers 12 digital inputs. Implementing 2 TC inputs requires 4 pins, leaving 8 pins free. Implementing 2 PT inputs uses 5 input pins.
  2. The total number of digital inputs listed includes high-speed and adaptable inputs.
  3. The total number of digital outputs listed includes high-speed outputs.

I/O Expansion Modules

Tip: this table is best viewed on a wider screen such as a laptop or desktop PC

+I/O Expansion Modules

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement		 Weight
Measurement		 Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
Digital IO-DI8-TO88 pnp/npn1
5kHz 16-bit		NoneNoneNone8 pnpNoneNoneNone24VDC 9
IO-DI8-RO48 pnp/npn1
5kHz 16-bit		NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88 pnp/npn1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38 pnp1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC 9
IO-DI1616 pnp/npn1
5kHz 16-bit		NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16 pnpNoneNoneNone24VDC 9
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement		 Weight
Measurement		 Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
Analog, Temperature and Weight/Strain Measurements IO-AI4-AO2NoneNone4
0-10V,
0-20mA,
4-20mA
12-bit		NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA,
4-20mA
12-bit		24VDC
IO-PT400NoneNoneNone4
PT100 / NI100 / NI120		NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000 / NI1000		NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V,
0-20mA,
4-20mA
12-bit		24VDC
IO-LC11 pnpNoneNoneNone1
Loadcell / Strain gauge		2 pnpNoneNoneNone24VDC
IO-LC31 pnpNoneNoneNone3
Loadcell / Strain gauge		2 pnpNoneNoneNone24VDC
IO-ATC8NoneNone8 Thermocouple, 0-10V,
0-20mA, 4-20mA 14-bit		NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V,
0-20mA,
4-20mA
14-bit		NoneNoneNoneNoneNoneNoneNot relevant

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement		 Weight
Measurement		 Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
XL Digital / Analog IO-D16A3-RO1616
pnp/npn		2
30kHz
16/32-bit 8		3
0-20mA,
4-20mA
10-bit		NoneNoneNoneNone16None24VDC
IO-D16A3-TO1616
pnp/npn		1
30kHz
16/32-bit 8		3
0-20mA,
4-20mA
10-bit		NoneNone15 pnp,
1 pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
EX-D16A3-RO8 716
pnp/npn		2
30kHz
16/32-bit 8 8		3
0-20mA,
4-20mA
10-bit		NoneNoneNoneNone8none24VDC
EX-D16A3-TO16 716 pnp/npn1
30kHz
16/32-bit 8		3
0-20mA,
4-20mA
10-bit		NoneNone15 pnp
1 pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement		 Weight
Measurement		 Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
High-speed Remote I/O Module EXF-RC15 2,49 pnp/npn3
200kHz
32-bit		NoneNoneNone4 npn4
(up to 3 PTO)		2None24VDC


Notes:

  1. Number of supported I/Os and I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number

Visilogic™ Software for Vision120™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

Information and download

Document Downloads

Tip: to save these files to your PC you may need to right-click and select "Save as..."

+Installation Guides

DownloadV120-22-R1
DownloadV120-22-R2C
DownloadV120-22-R6C
DownloadV120-22-R34
DownloadV120-22-T1
DownloadV120-22-T38
DownloadV120-22-T2C
DownloadV120-22-UN2
DownloadV120-22-UA2
DownloadV120-22-RA22

+Technical Specifications

DownloadV120-22-R1
DownloadV120-22-R2C
DownloadV120-22-R6C
DownloadV120-22-R34
DownloadV120-22-T1
DownloadV120-22-T38
DownloadV120-22-T2C
DownloadV120-22-UN2
DownloadV120-22-UA2
DownloadV120-22-RA22

+2D Drawings

Download2D Drawing

+3D Drawings

Download3d Drawing
